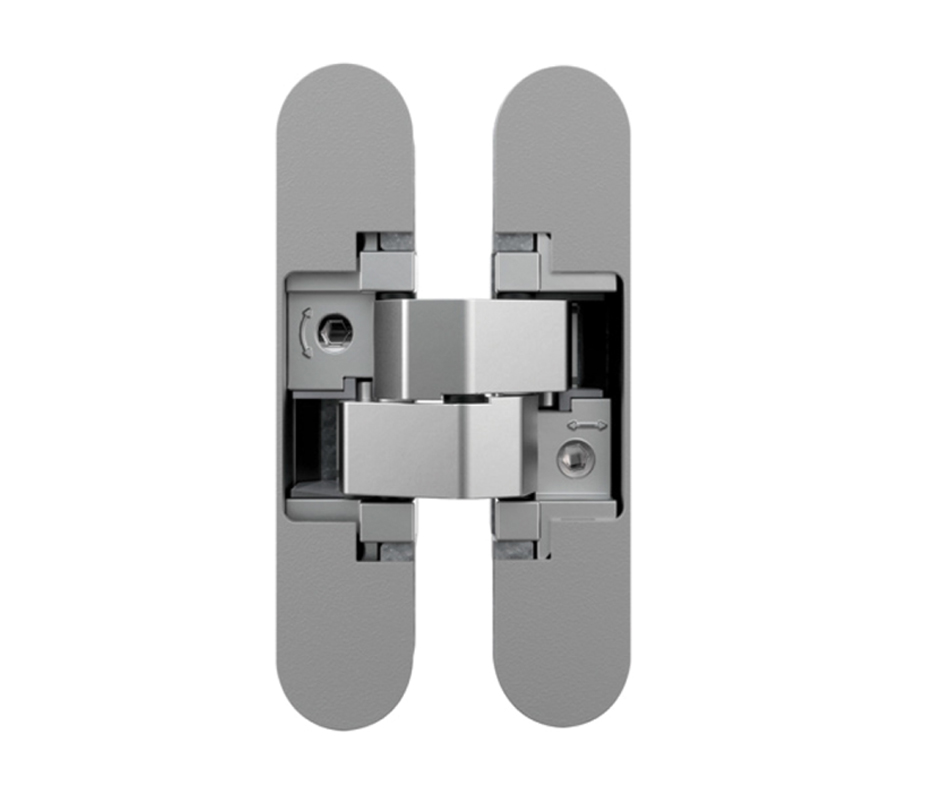

Concealed Door Hinges
completely concealed hinge system for timber frames
for unrebated residential doors
3D adjustable (side +/- 1,5 mm, height
+/- 2,5 mm,compression +/- 1,0 mm)
material zamak / steel
Load capacity: 60.0 kg
Overall length: 125.0 mm
Width (door part): 30.0 mm
Width (frame part): 30.0 mm
Cutter diameter: 14,0 or 16,0 mm
Collar ring diameter: 25,0 or 27,0 mm
Opening angle: °180
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
